Size

DN15 to DN50

Pressure Rating

PN25

Temperature Rating

10 - 120°C

End Connections

D901 - Sizes 3/4" to 2"
Inlet - Female
Outlet - BS EN 10226 formerly taper male

Please refer to Datasheet for full technical information

Features & Benefits

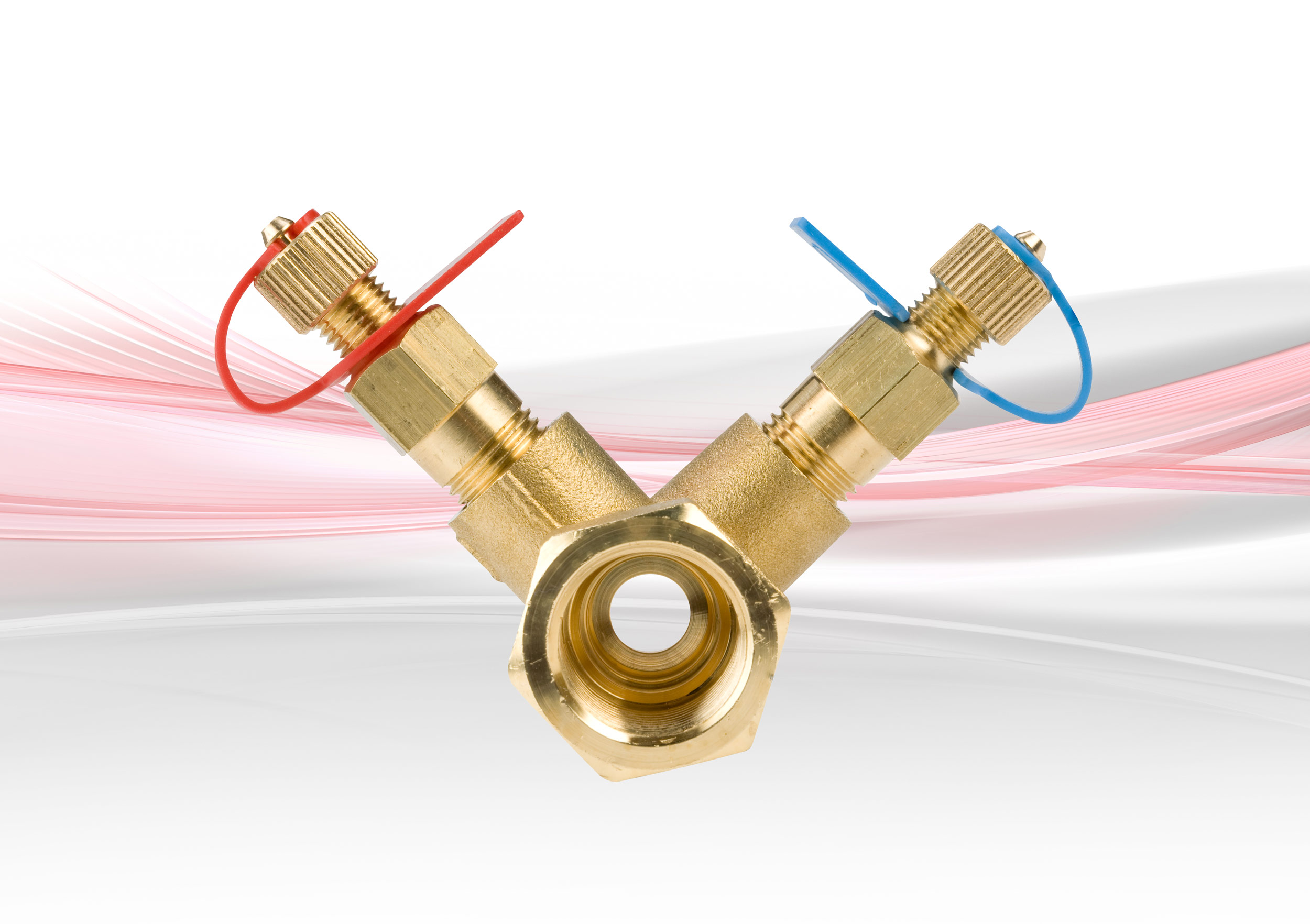

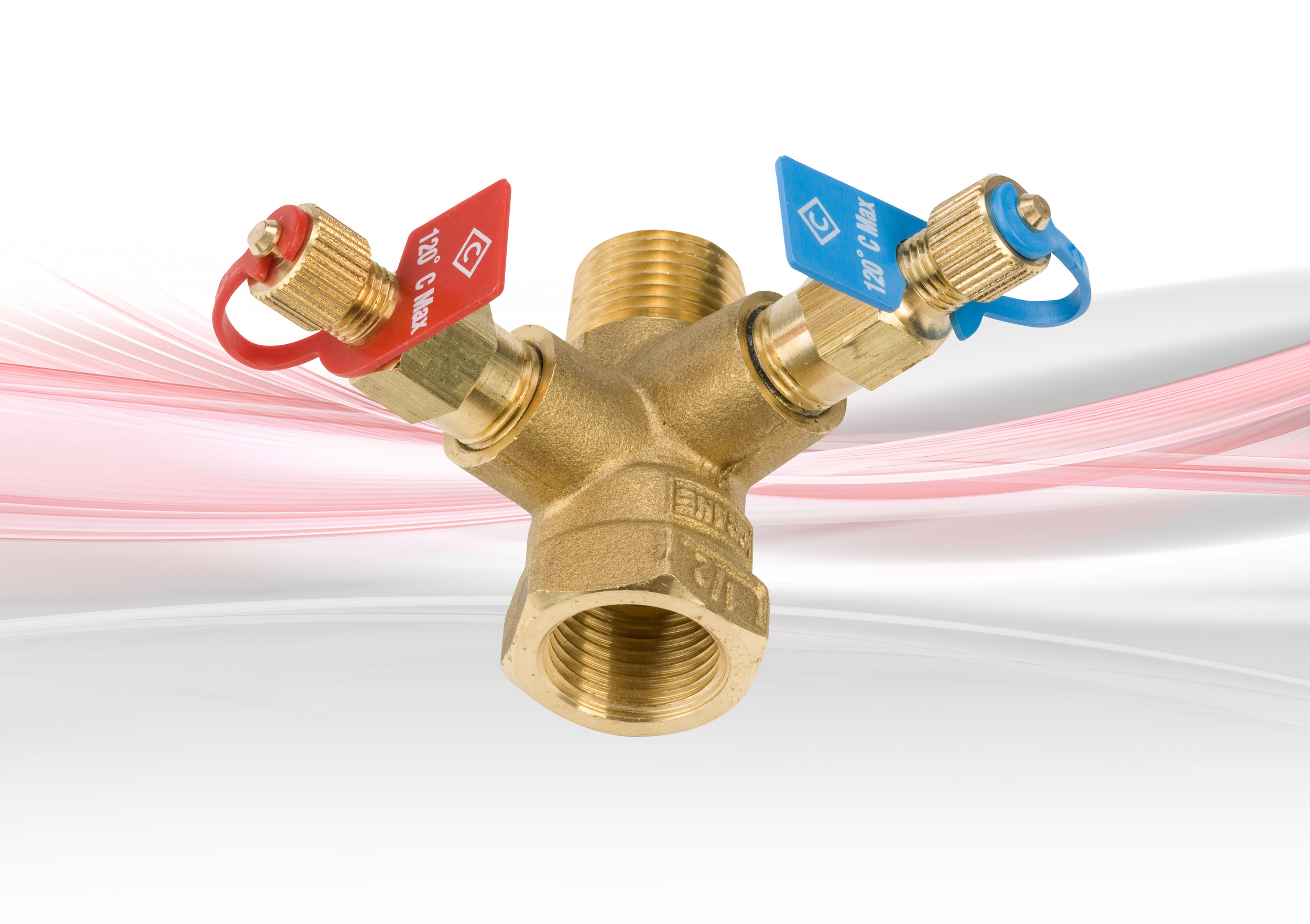

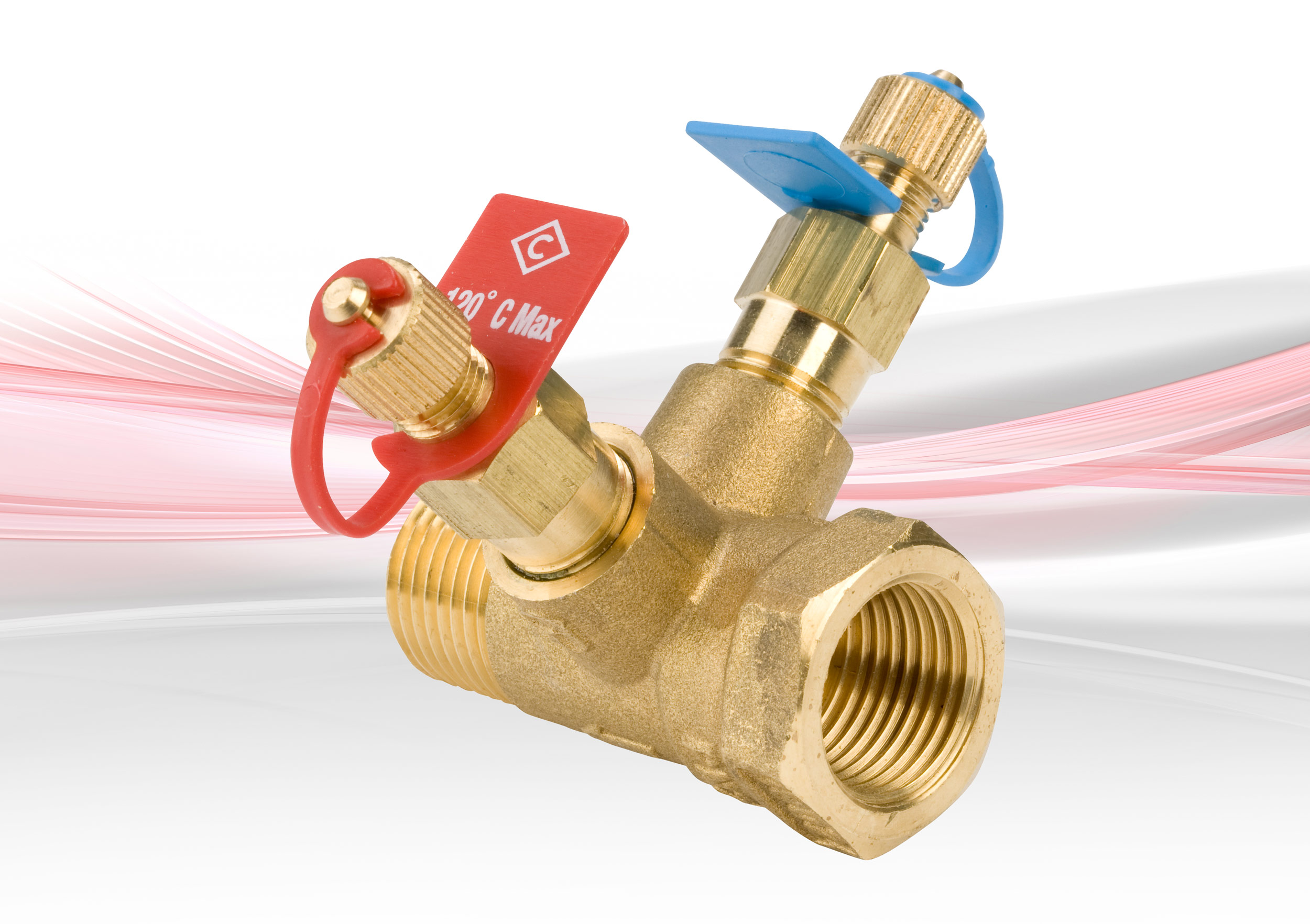

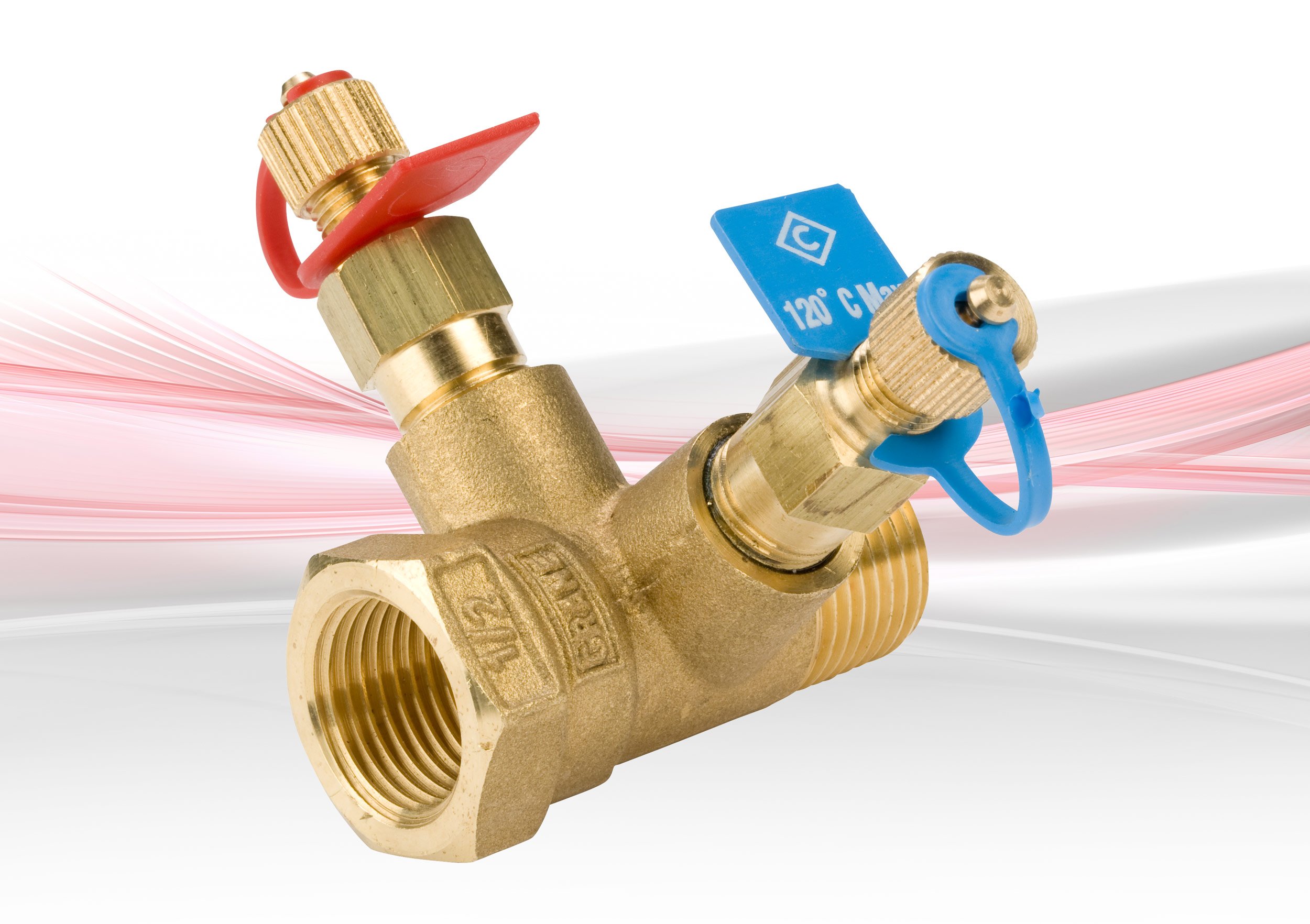

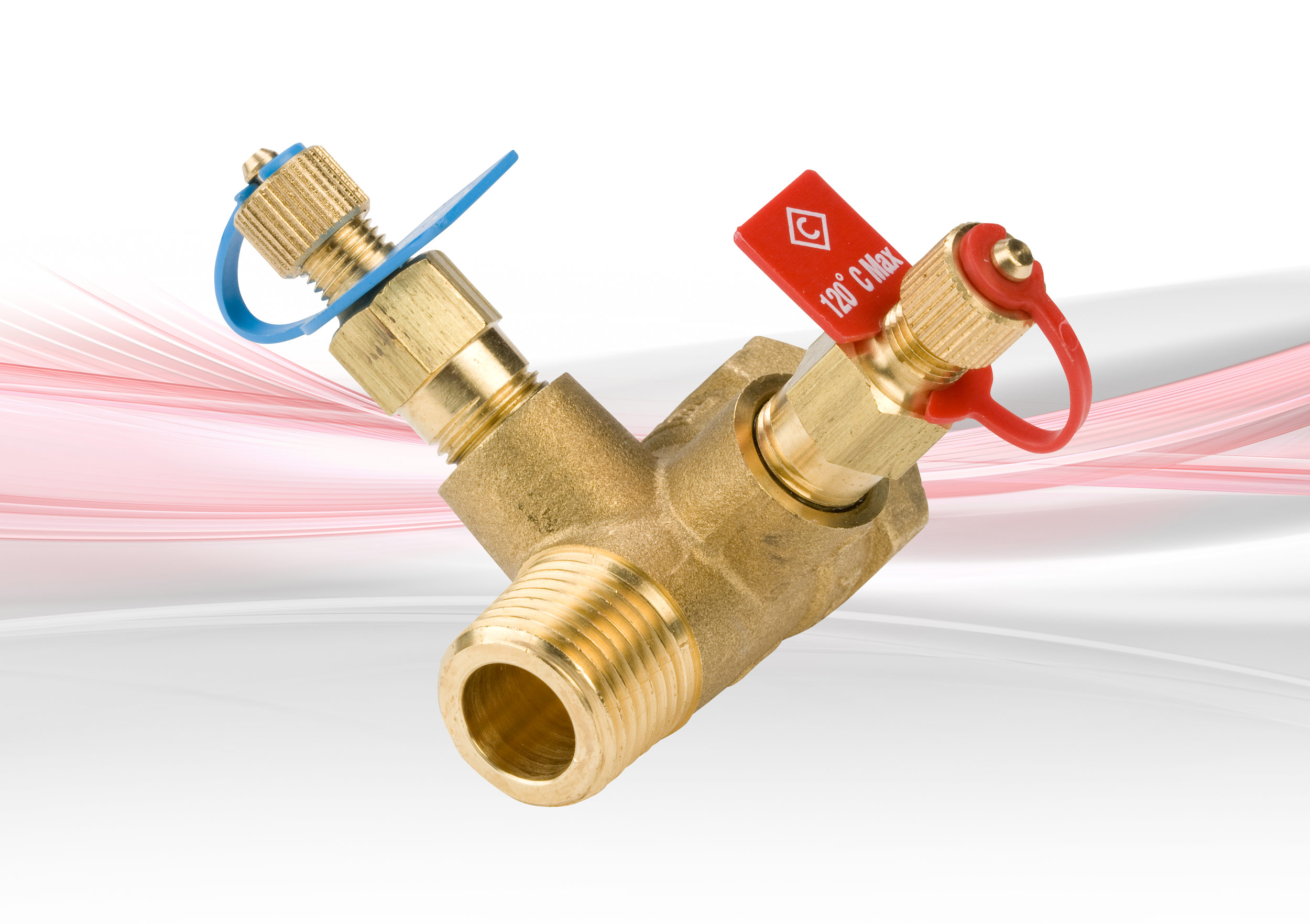

  • D901 Flow Measurement Device is suitable for systems where pipes have been sized on the basis that pipe frictional losses lie in the range 100 to 400 Pa/m
  • Square edged entrance orifice plates with tappings for P84 insertion style test points
  • Flow measurement accuracy of ±5%
