DN15 Only

Pressure Rating


Temperature Rating

10 - 120°C

End Connections

D902 - Sizes 1/2" Inlet parallel female threads.
Outlet - Taper male threads.


DZR Copper Alloy

Please refer to Datasheet for full technical information

  • WRAS
  • BIM

Features & Benefits

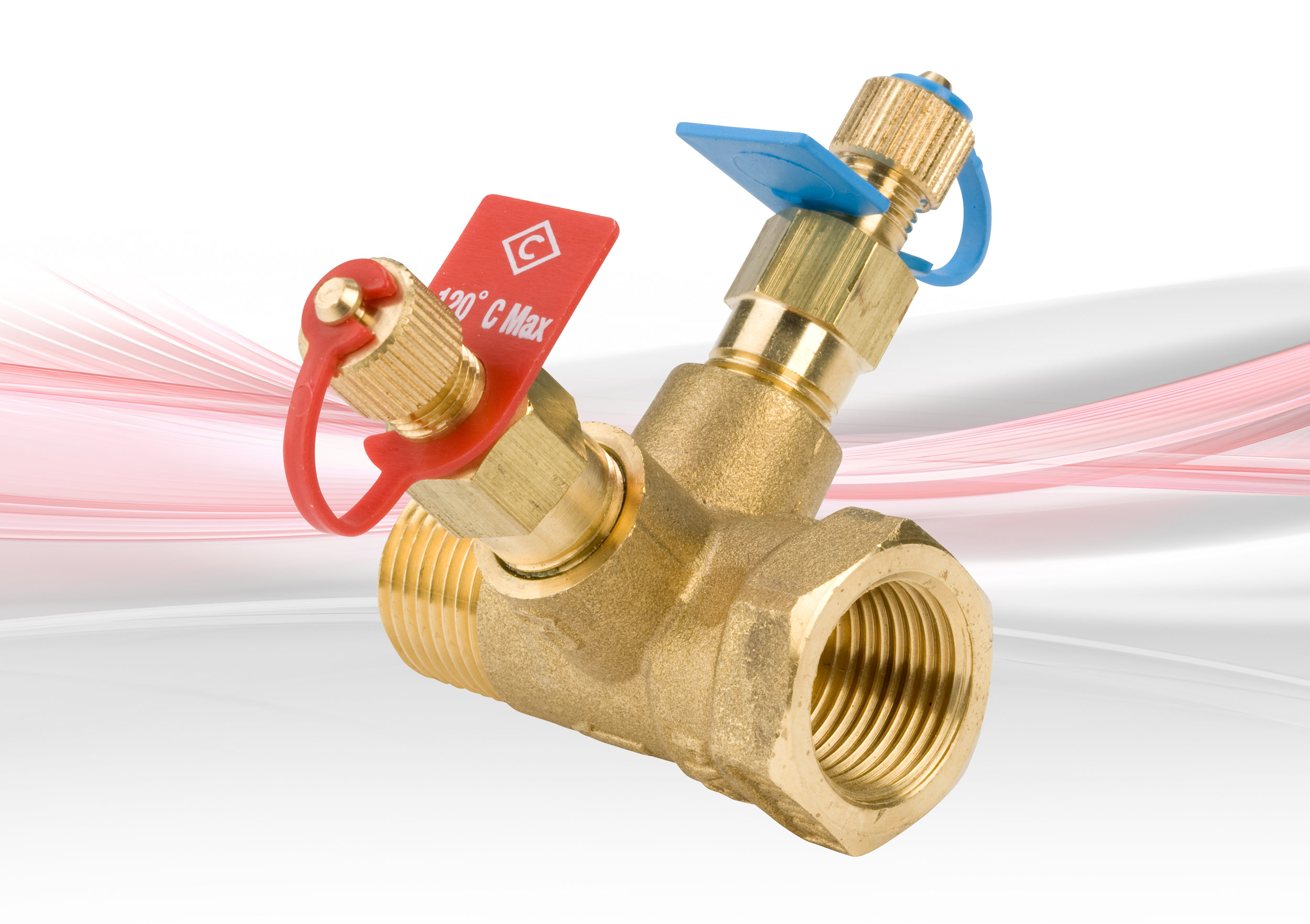

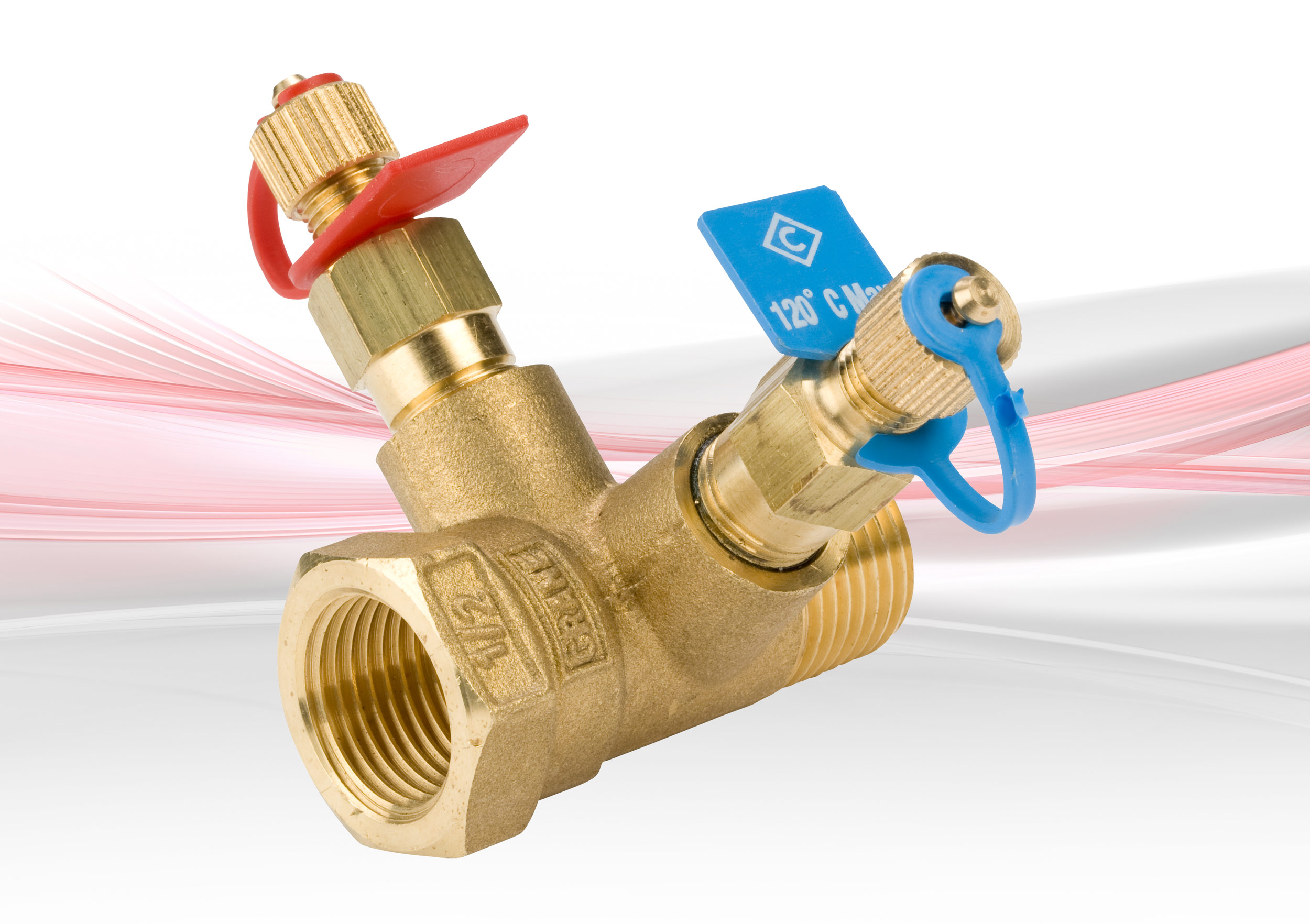

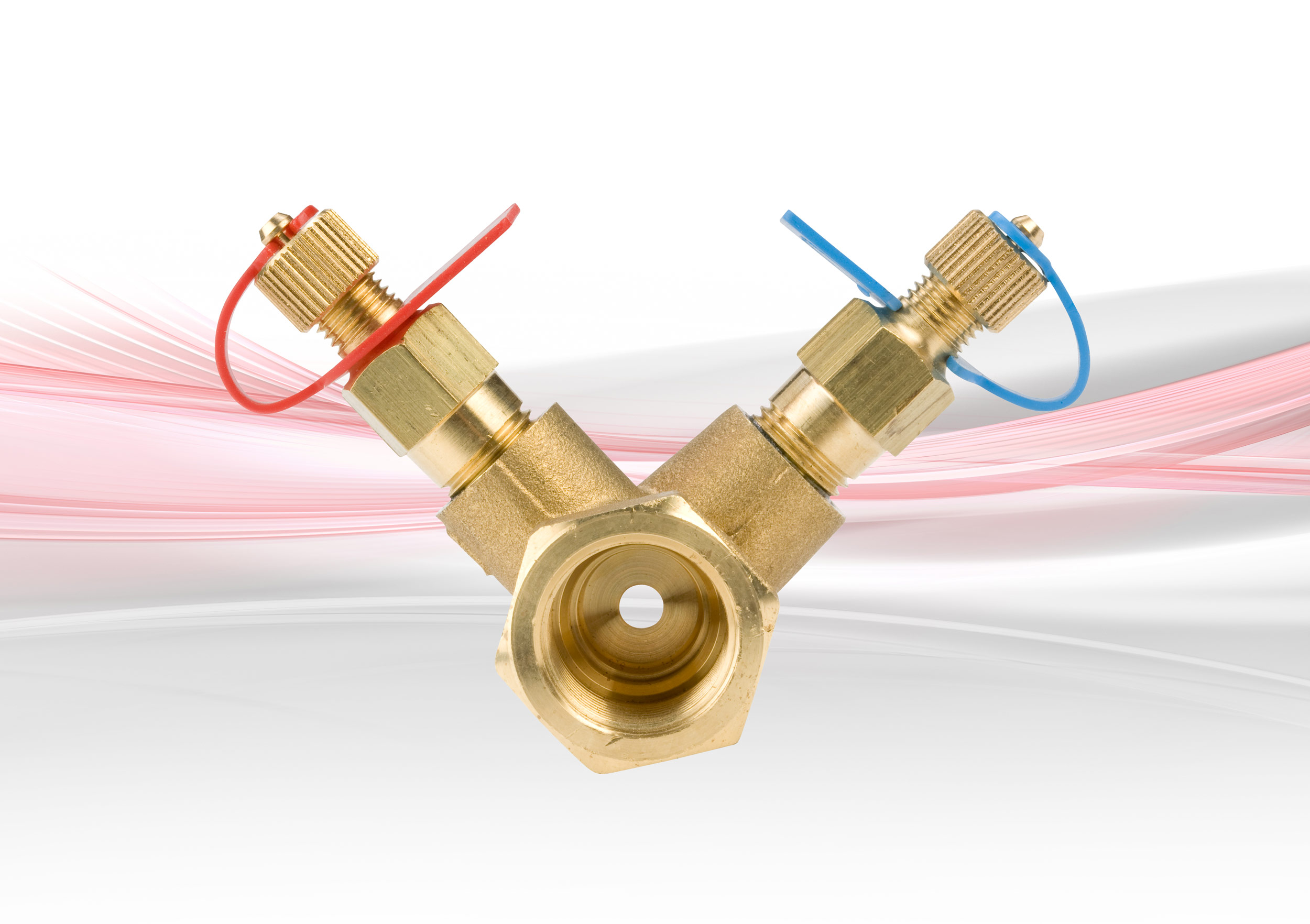

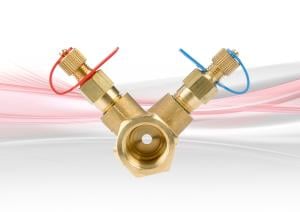

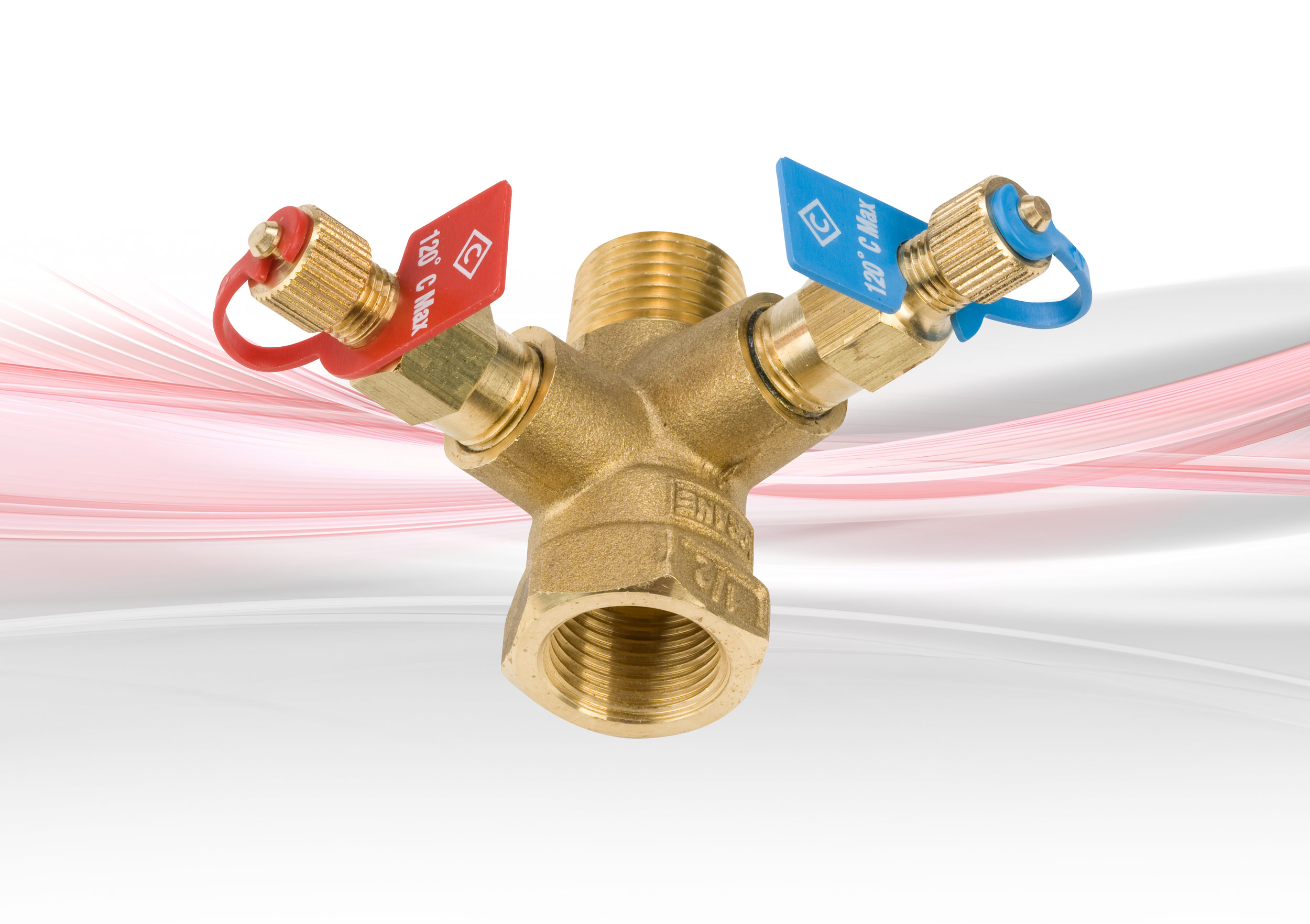

  • D902 Flow Measurement Device (1/2"/15mm size only) is suitable for the measurement of ultra-low flows in the range 0.015 to 0.06 l/sec e.g. flows to fan coil units
  • Square edged entrance orifice plates with tappings for P84 insertion style test points
  • Flow measurement accuracy of ±5%
