Size

DN65 to DN300

Pressure Rating

PN16

Flow Rate

Please see Flow Measurement Graphs

Temperature Rating

10 - 120°C

End Connections

Flanged

Material

Ductile Iron

Please refer to Datasheet for full technical information

  • BIM

Features & Benefits

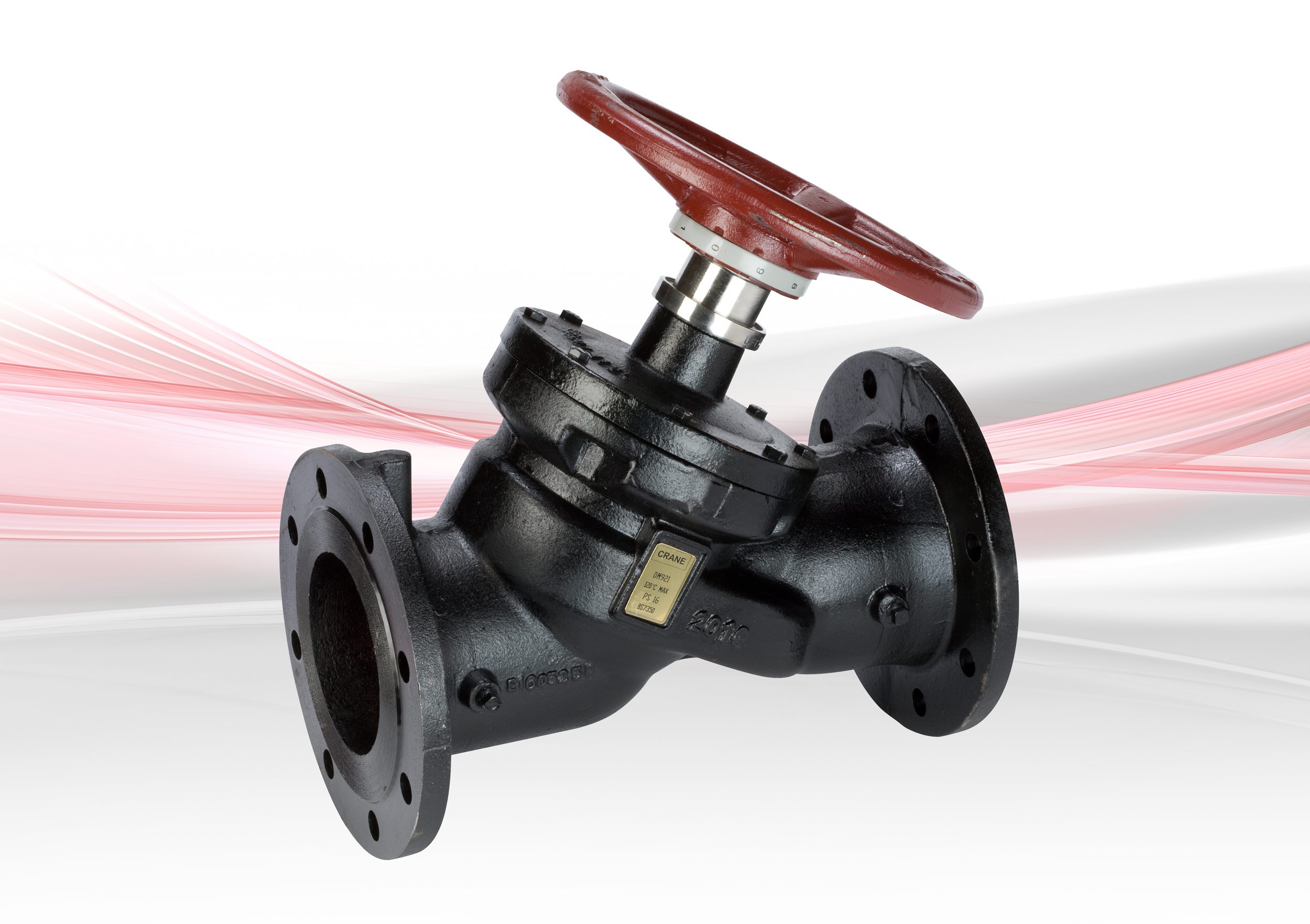

  • Y-Pattern globe valve with a characterised throttling disc
  • The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate
  • In two unit systems, the DM921 has sufficient authority to regulate flow in circuits incorporating a flow measurement device
  • The valve opening may be set to control flow at a pre-determined rate
  • Fitted with 2 x 1/4" BSPT plugs for conversion to DM931 if required
  • Operation of the valve is by means of a hand wheel incorporating a micrometre device
