Product Overview
DN15/15
PN16
0 to 90°C (System)
-5°C to 55°C (Actuator)
-5°C to 55°C (Actuator)
Valve body - BSP Taper
Terminal end - Compression/Solder
(15mm only)
Terminal end - Compression/Solder
(15mm only)
300N
24Vac/dc ± 10%
*Please refer to Datasheet for full technical information
DEE40B
DN15/15

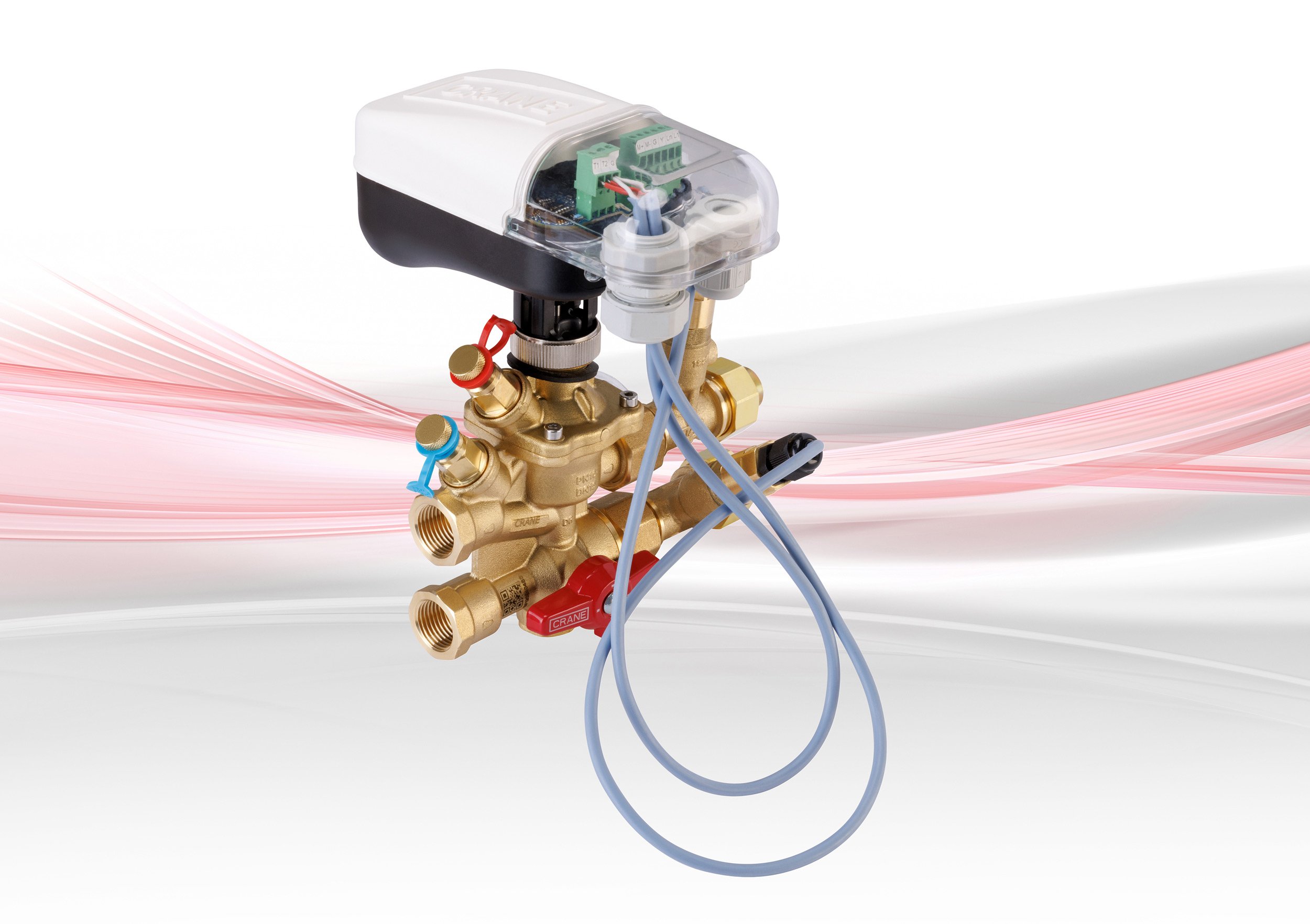

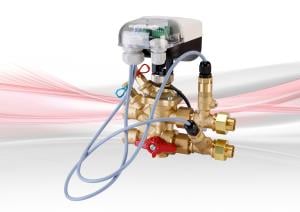

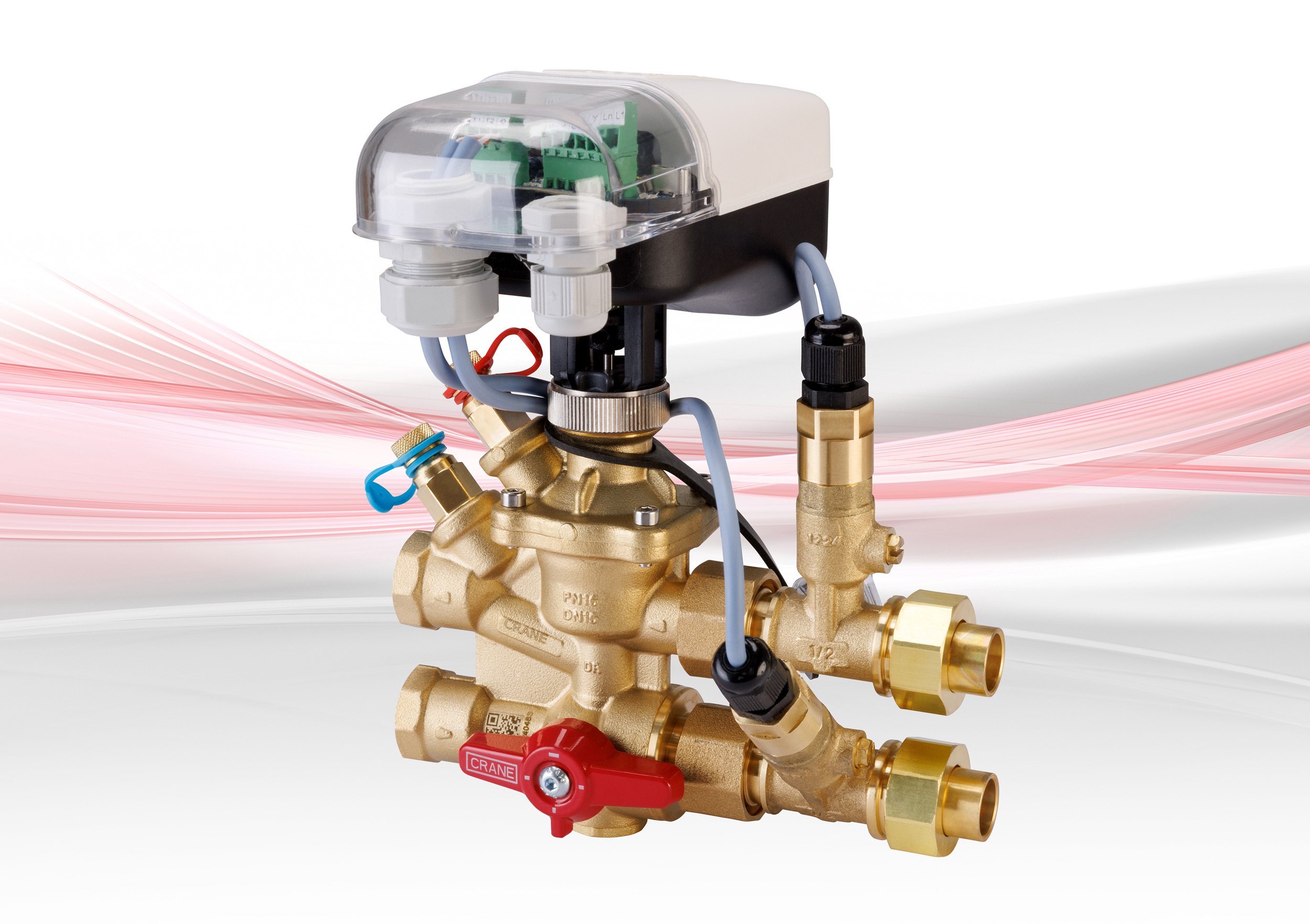

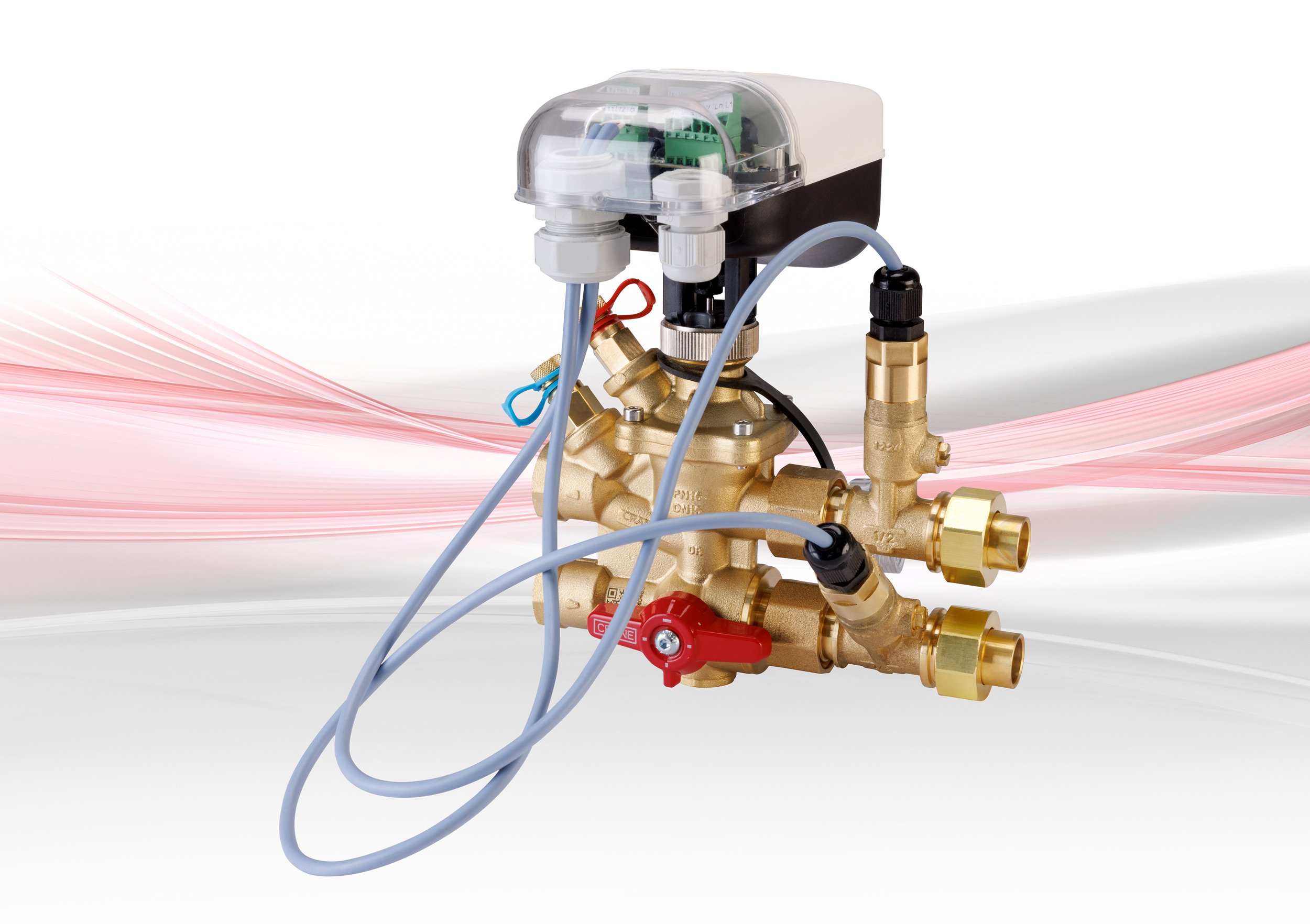

Dominator Energy Eco with BSRIA Flushing Drains
- Save energy and optimise plant efficiency through automatic Delta T and thermal power management.
- Crane Dominator Eco combined with cutting edge SMART technology enables: Delta T limitation, temperature control, temperature limitation, power control and power limitation functionality within a single compact unit.
- Supports further data analytics trough enhanced data harvesting via Modbus or BACnet integration to the BMS.
- Reduced commissioning time and costs due to remote valve setting via the BMS or Crane configurator.
- Reduced installation time and wiring costs thanks to a fully assembled & factory tested unit, integrated temperature sensor pockets and pre-wired temperature sensors.
- Assured performance due to all valves being both pressure tested in accordance with BS EN 12266-1, as well as flow limitation tested in accordance to BSRIA BTS1.
- PICV and ACTCS1 actuator provide accurate differential pressure control as well as indicated flow rate back to the BMS or via integral flow measurement on the DE40B valve.
- Controllable via 0-10v signal following configuration using Crane configurator software, ideal for retrofit applications.
