Product Overview
DN15/15 to DN25/25
PN25
0 to 90°C
Flushing By-pass body - BSP Taper,
Strainers & Tailpieces - BSP Taper
Strainers & Tailpieces - BSP Taper
80mm
*Please refer to Datasheet for full technical information
Z9401P / Z9401PF
DN15/15 to DN25/25

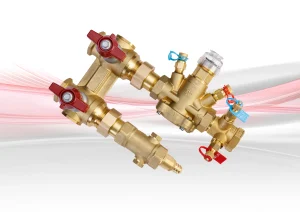

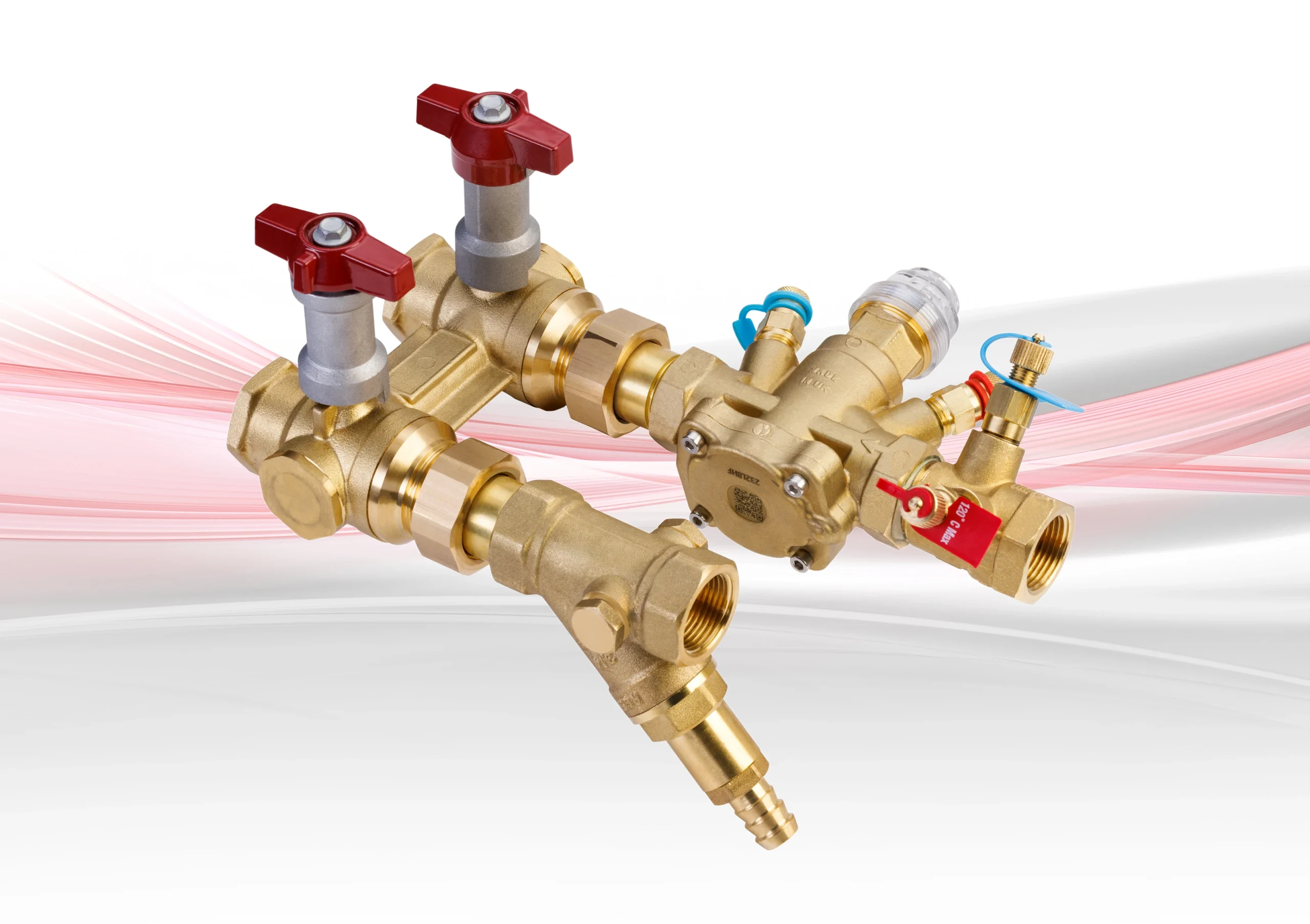

Dominator Peak Pro with PICV & Strainer Drain for use with Crane’s Insulation Box
- Compact, pre-fabricated unit – now available with Peak Pro PICV with a wide range of settable flows to suit all applications.
- All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve.
- Designed for use with Crane’s Insulation box, reducing thermal loss.
- Provides accurate flow rates & differential pressure control as well as flow measurement (Z9401PF), system flushing and isolation.
- Fully assembled & factory tested unit reduces installation time, costs and specification risks.
- All units rated to PN25 internal pressure and 800kPa differential across the PICV.
- On-Off, modulating, feedback and Smart actuators are available to match specification.
