Our genius is valves ®

Product Overview

DN15/15 | DN20/15 | DN20/20 | DN25/20
PN16
0 to 90°C
Flushing By-pass body - BSP Taper
Strainers & Tailpieces - BSP Taper
300N
24Vac/dc ± 10%

*Please refer to Datasheet for full technical information

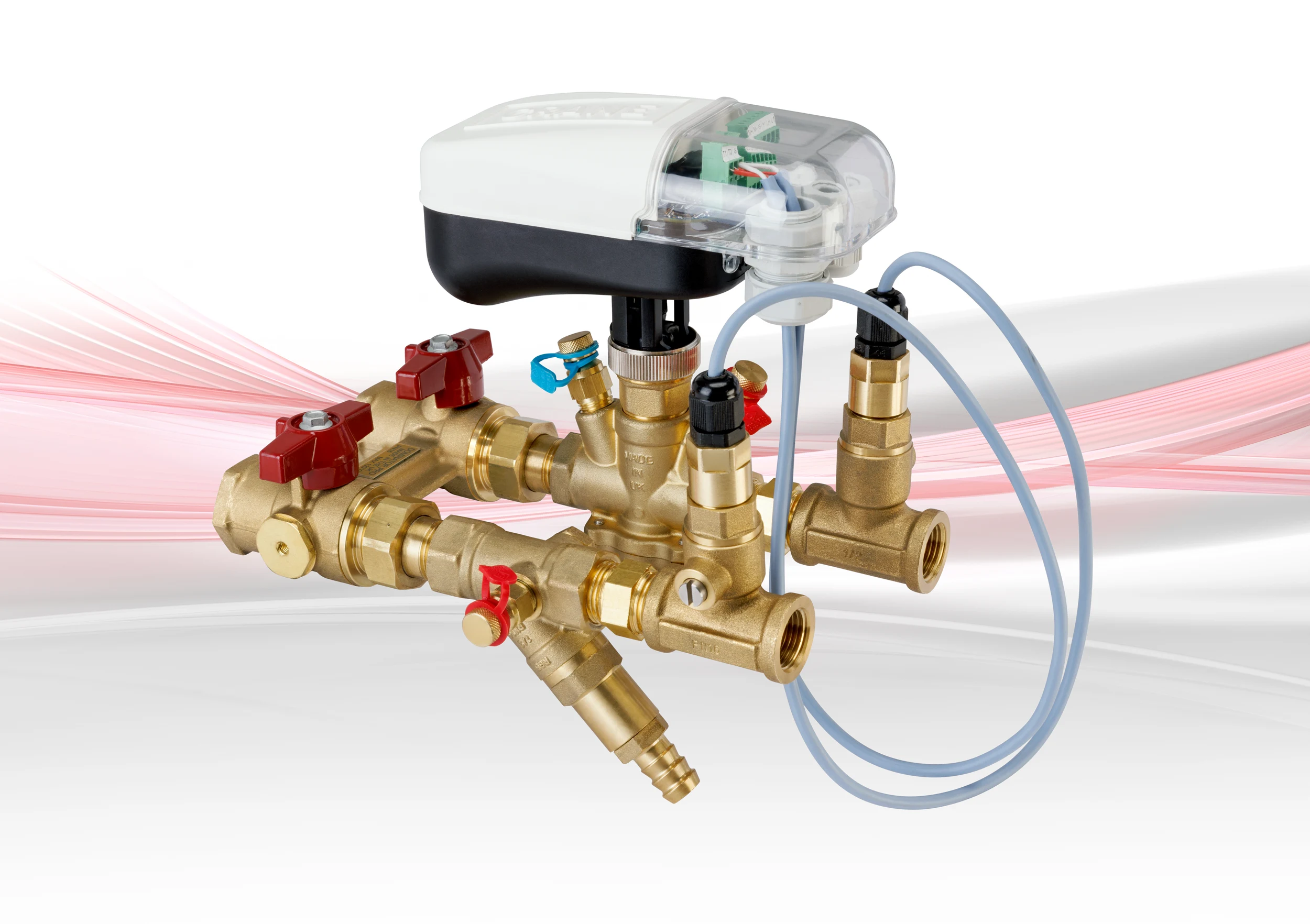

Dominator Energy from Crane Fluid Systems

Z8801P & Z8801PF
DN15/15 | DN20/15 | DN20/20 | DN25/20

Dominator Energy with PICV & Drain (& FMD)

  • Save energy and optimise plant efficiency through automatic Delta T and thermal power management
  • Crane Fluid System Dominator combined with cutting edge SMART technology enables: Delta T limitation, temperature control, temperature limitation, power control and power limitation functionality within a single compact unit
  • Supports further data analytics through enhanced data harvesting via Modbus or BACnet integration to the BMS
  • Reduced commissioning time and costs due to remote valve setting via the BMS or Crane configurator
  • Reduced installation time and wiring costs thanks to a fully assembled & factory tested unit, integrated temperature sensor pockets and pre-wired temperature sensors
  • Assured performance due to all valves being both pressure tested in accordance with BS EN 12266-1, as well as flow limitation tested in accordance to BSRIA BTS1
  • Available in 400kPa & 800kPa rated variants
  • PICV and ACTCS1 actuator provide accurate differential pressure control as well as indicated flow rate back to the BMS or via integral flow measurement on the DE40B valve Controllable via 0 10v signal following configuration using Crane configurator software, ideal for retrofit applications.
