Check & Non Return Valves Range

D140W Swing Check Valve - Bronze

PN25

  • WRAS Approved Product
  • BIM File Available
Taper threaded to BS EN 10226-2 (ISO 7-1)
D220W-D220CW Double Check Valve - DZR BrassD220W-D220CW Double Check Valve - DZR Brass

D220W-D220CW
D220W: 1/2" to 2"
D220CW: 15mm to 28mm

Double Check Valve – DZR Brass

PN16

  • WRAS Approved Product
  • KIWA
  • BIM File Available
D220W: 1/2" to 2"
D220CW: 15mm to 28mm
Compression to BS EN 1252-2 and taper female threaded to BS EN 10226-2
FM463W Check Valve - PN16

FM463W
DN50 to DN300

Check Valve – PN16

  • WRAS Approved Product
  • BIM File Available
DN50 to DN300
-10 to 120°C (85°C for WRAS)
UK End Connection: Suitable for flange connection to BS EN 1092-2 PN16 / BS EN 1092-2 PN25
US End Connection: BS 1560, ANSI B16.1, ANSI B16.5

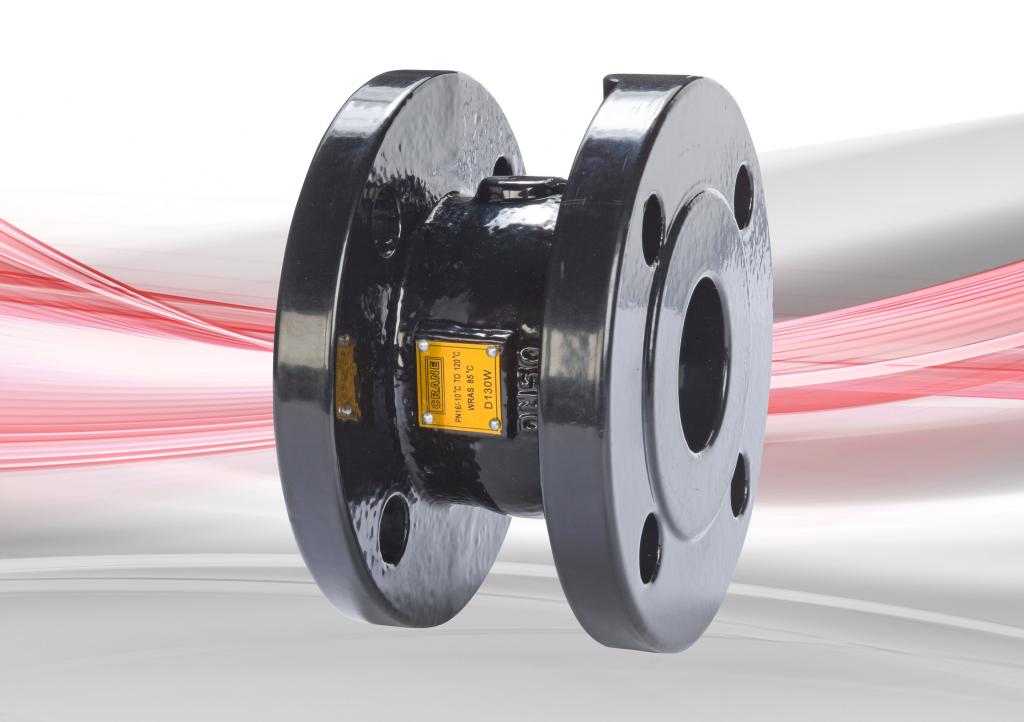

D130W Single Non-Return Valve - Cast Iron

PN16

  • WRAS Approved Product
  • BIM File Available
Flanged to BS EN 1092-2 PN16

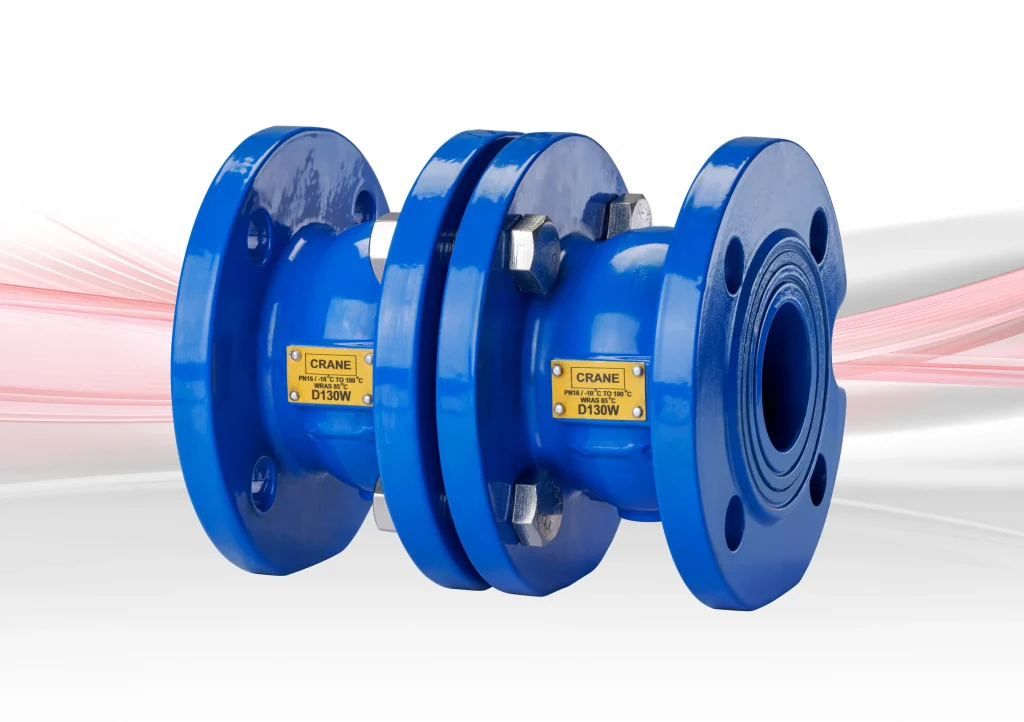

D230W Double Non-Return Valve - Cast Iron

PN16

Flanged to BS EN 1092-2 PN16
