Product Overview

DN15/15
PN16
0 to 90°C
Valve body - BSP Taper
Terminal end - Compression/Solder

*Please refer to Datasheet for full technical information

dominator-eco
  • BIM File Available

DE40BFP
DN15/15

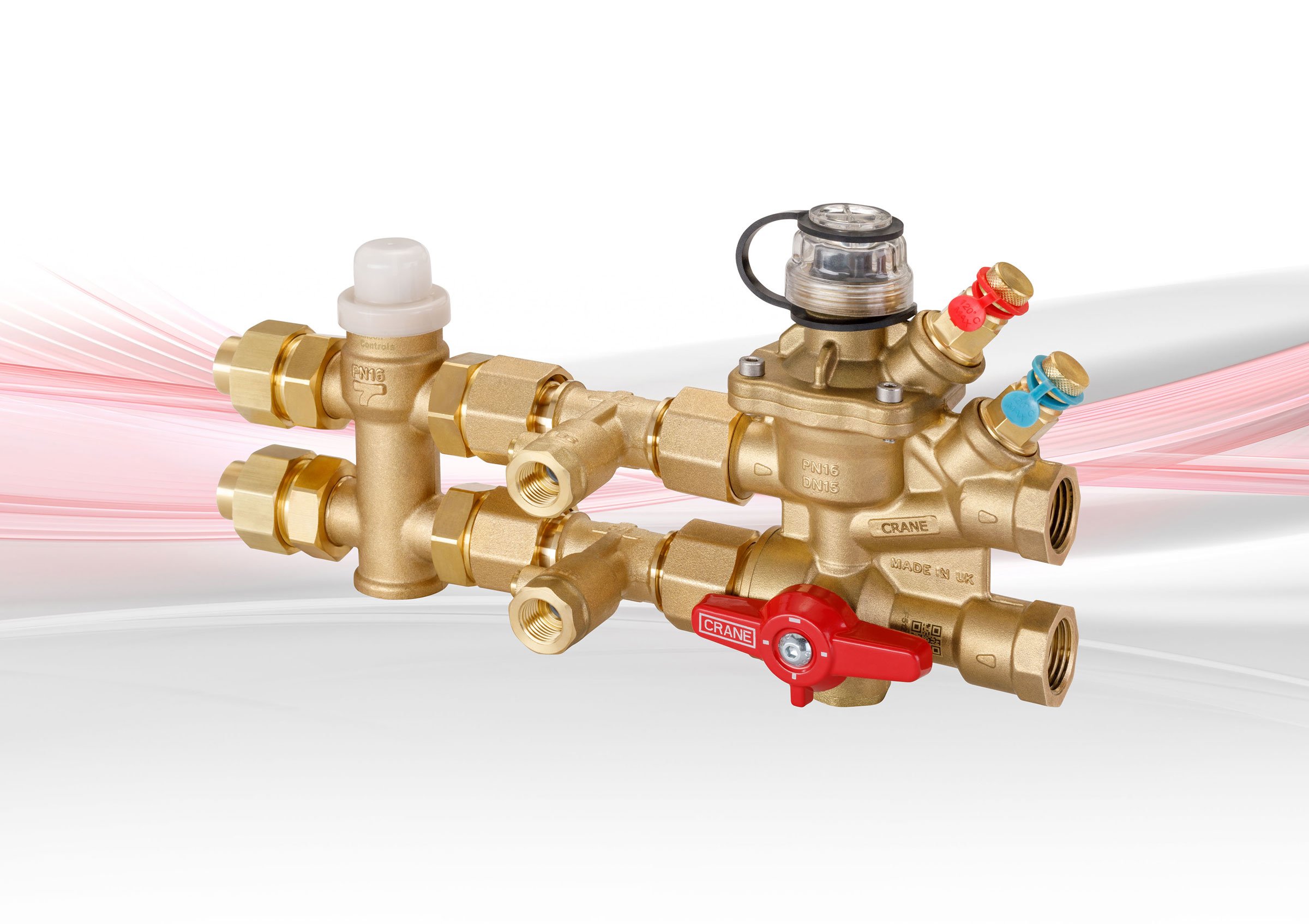

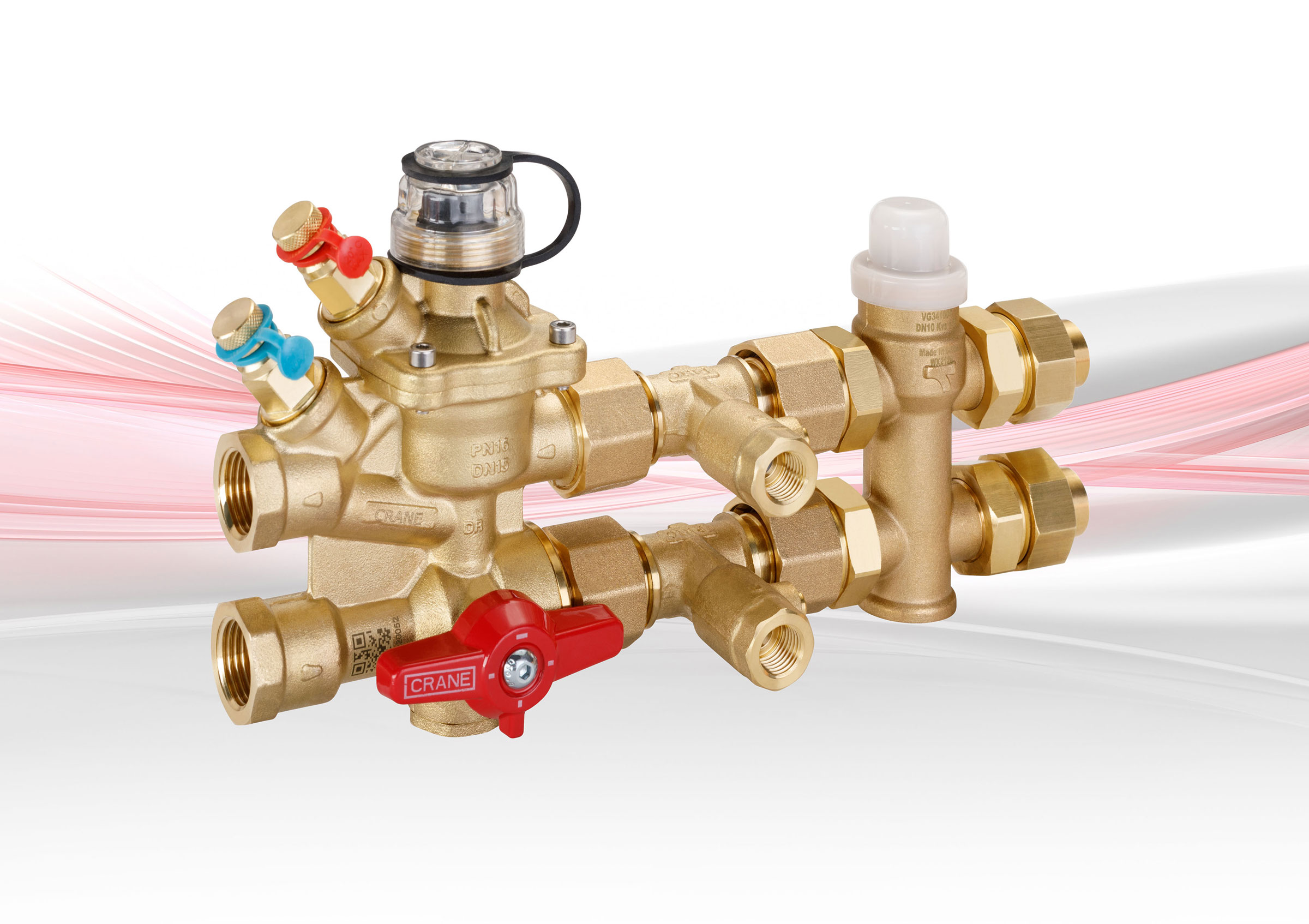

Dominator Eco with BSRIA Flushing Drains & 4-Port

  • Innovative design – Unique differential pressure mechanism, ensuring accurate flow control and allowing the valve to be back flushed if required. Patent Pending
  • Reduced embodied carbon and simple installation by combining a PICV, H-body and FMD together, making the Dominator Eco 33% lighter and 20% shorter than our current 40mm Dominator alternative
  • Reliable flow measurement through the integral FMD in accordance to BS 7350
  • Easily identifiable chilled and heating applications via the colour coded tags that also display the fan coil reference
  • Paperless – Digital datasheet, IOM and commissioning tool can be quickly accessed via QR code on the colour coded tags
  • BSRIA BG29 compliant design – Full forward-flushing and back-flushing capabilities
  • Peace of mind – 100% of Dominator Ecos are tested before shipping. This involves pressure testing to BS EN 12266-1 and performance testing in accordance with BSRIA BTS01
  • Direct mounting to FCUs – designed for easy access to components in confined spaces
  • Flow regulation and ∆P verification – Utilising setting dial and integrated test points
  • Minimum flow protection – 4-Port valve included to provide a constant flow rate irrespective of load demand
  • Comprehensive flow range available, allowing for cost effective valve selections
  • PN16 rated product, suitable for building services applications
  • Increased functionality and reduced material requirement – Interchangeable test points and nozzles facilitate ∆P measurement and flushing where required

To find out the system flow rate through a Dominator Eco visit our Flow Rate Calculator.

The Dominator Eco from the start has been engineered with sustainability in mind.
