Product Overview

50mm - 300mm
0°c to 85°c (WRAS 0°c to 80°c)
Flanged in accordance with BS EN 1092-2
Shell: 24 Bar
Seat: 17.6 bar
Ductile Iron

*Please refer to Datasheet for full technical information

  • WRAS Approved Product

FM124 / FM125
50mm - 300mm

Resilient Seated Gate Valve (RSGV) – Ductile Iron

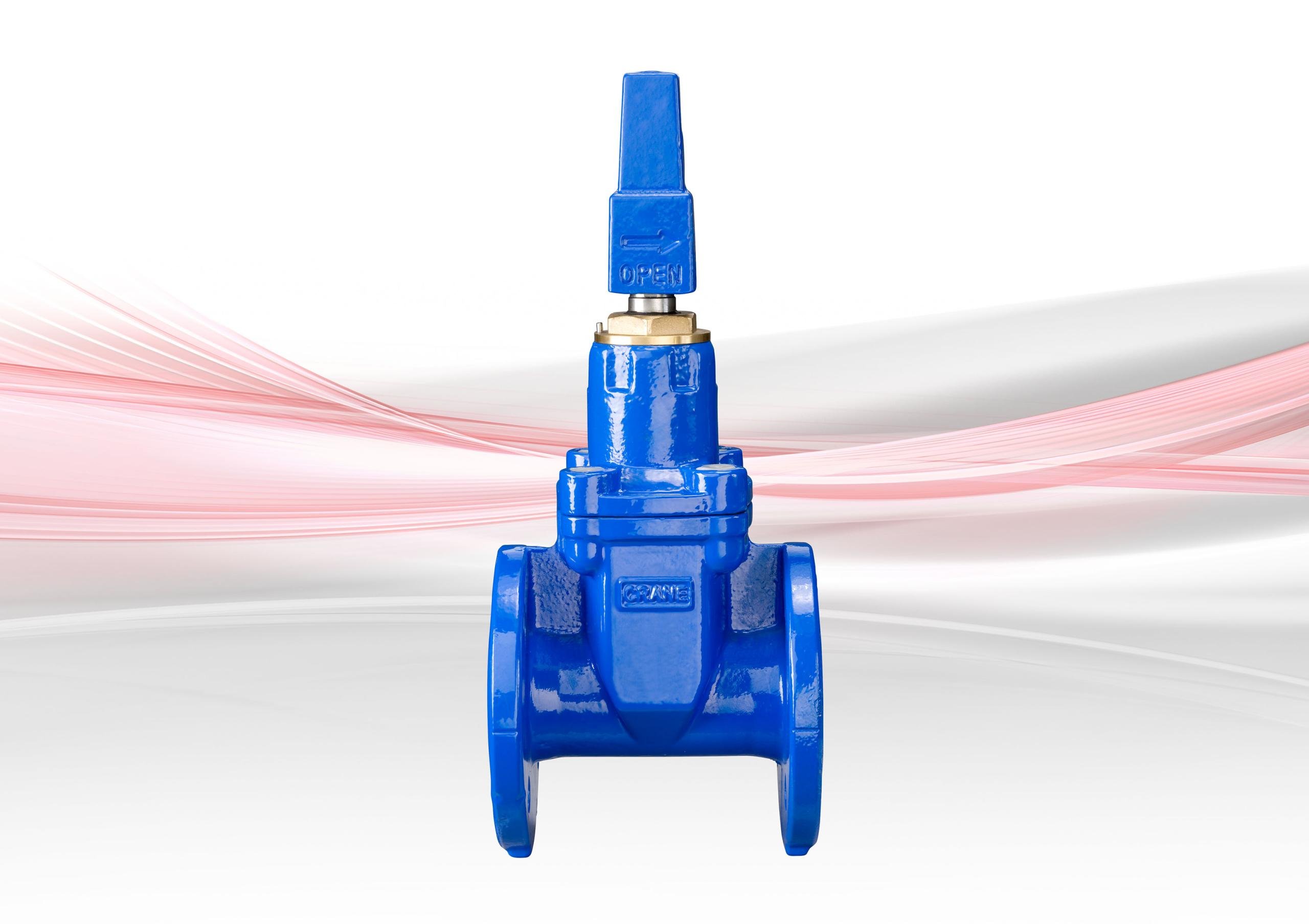

Resilient Seated Gate Valve (RSGV) Handwheel & Stem Adaptor Operated

  • Manufactured in accordance with BS EN 1074 for quality assurance
  • Handwheel (FM124) or Stem Adaptor (FM125) version available
  • WRAS approved product up to 80°C. Components and coating WRAS approved to 85°C
  • WRAS listed fusion bonded epoxy coating, minimum thickness 250 micron and corrosion resistant construction
  • Manufactured from Ductile Iron EN1563 EN-GJS-500-7 for improved durability
  • Ductile iron disc encapsulated with EPDM WRAS elastomer for improved isolation
  • 5 internal O-Rings and 1 additional wiper seal preventing ingress and improving functional versatility.
